fhlr2gcb2g High Voltage cables

At Voldt, we offer an extensive selection of FHLR2GCB2G high voltage cables, ideal for hybrid and electric vehicle applications. These cables are specially designed for high voltages, with a voltage rating of 1000 VAC / 1500 VDC and a test voltage of 10 kV for 5 minutes. Thanks to their excellent flexibility and temperature resistance (-40°C to +180°C), they can be safely used in extreme conditions without loss of performance.

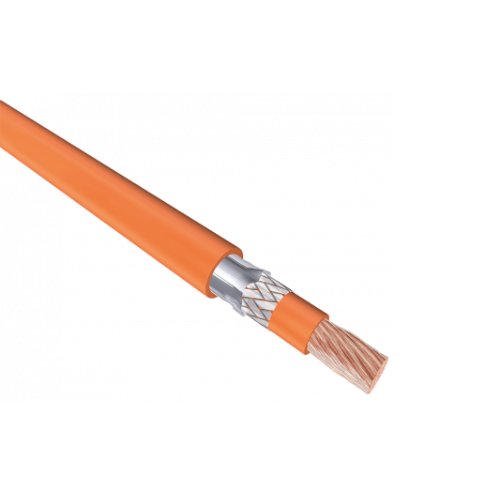

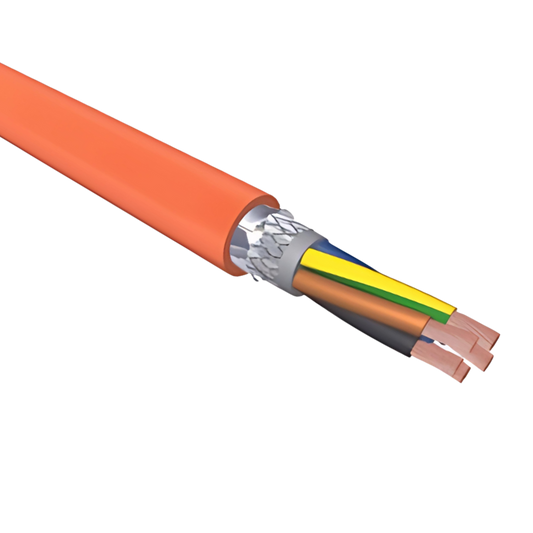

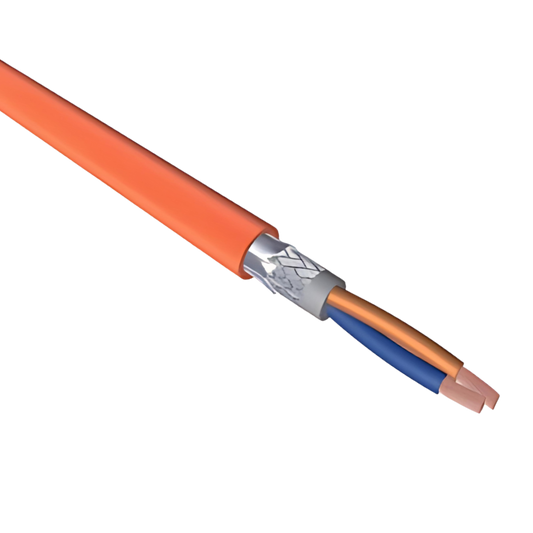

The cables are constructed of a flexible bare copper core with silicone insulation, braided copper shield, and a silicone outer jacket. This design provides excellent mechanical strength and is resistant to chemicals and flames. In addition, the cables meet strict international standards, including ISO 19642 and ISO 6722-1, ensuring a high level of reliability and safety.

Here is a technical overview of the FHLR2GCB2G cable specifications.

1. Voltage and testing:

• Rated voltage: 1000 VAC / 1500 VDC

• Test voltage: 10 kV (5 minutes)

• Spark test: 8 kV

2. Temperature resistance:

• Operating temperature: -40°C to +180°C

• Class E according to ISO 6722-1 and ISO 19642-1

3. Construction:

• Flexible bare copper core

• Silicone insulation and outer jacket

• Braided copper shielding and aluminum/PET tape

4. Standards:

• ISO 19642-9, ISO 6722-1, EN 13602

• Halogen-free in accordance with IEC 60754-1

Specifications such as outer dimensions, resistance values and bending radius depend on the cable cross-section, ranging from 10 mm² to 95 mm².

At Voldt, you not only benefit from high-quality products, but also additional advantages such as fast delivery, free shipping within Europe, and expert customer service. Whether you place a small order or have a large project, we provide the reliable solutions you need for your electronic vehicle systems.
